Product Details
Place of Origin: CHINA
Brand Name: MH
Certification: ISO9001 RoHS
Model Number: MH01
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: USD 0.1-0.5
Packaging Details: CARTON/WOODEN BOX
Delivery Time: 15-20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS WEEK
Material: |
Mullite |
Color: |
White Or Brown |
Density: |
2.3g/cm³ |
Certification: |
RoHS ISO9001 |
Size: |
Customers' Requests |
OEM,ODM: |
Acceptable |
MOQ: |
100 |
Material: |
Mullite |
Color: |
White Or Brown |
Density: |
2.3g/cm³ |
Certification: |
RoHS ISO9001 |
Size: |
Customers' Requests |
OEM,ODM: |
Acceptable |
MOQ: |
100 |

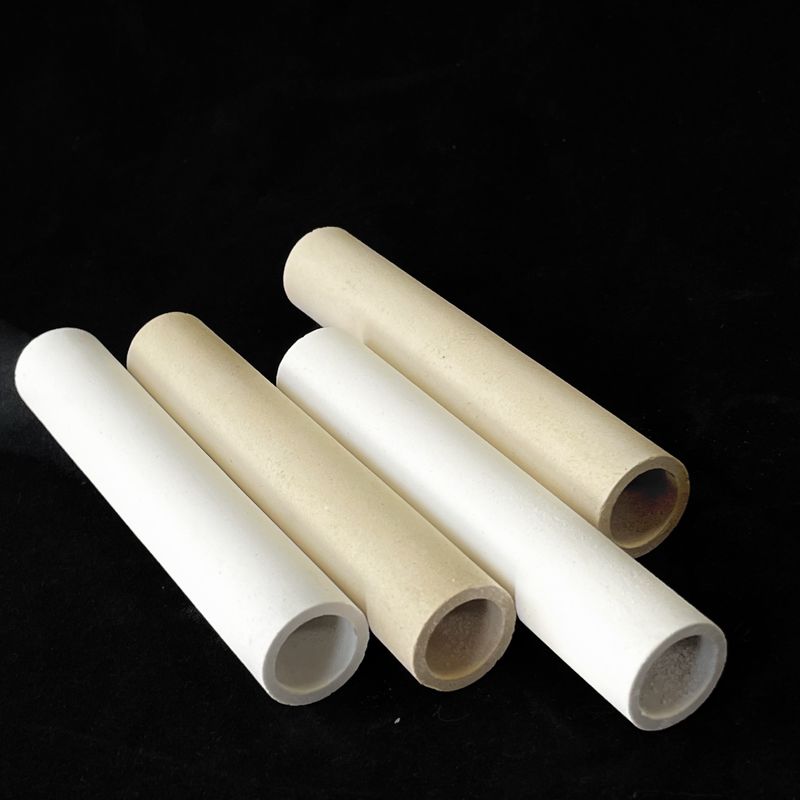

Insulating mullite ceramic tube fire-proof ceramic tube
Mullite Ceramics:
Mullite ceramics is a general term for a class of ceramics in which the main crystal phase is mullite (3Al2O3·2SiO2). If the mullite porcelain without glass phase is prepared from synthetic ultra-fine high-purity mullite powder, it is also called new mullite ceramic, that is, high-purity mullite ceramic.
Optical performance
Although the mullite crystal is not a cubic crystal system, it is only an orthorhombic system, but due to the small birefringence of light (only 0.012), a ceramic material having a certain transparency can be obtained under certain conditions. The high-purity ultrafine powder prepared by the alkoxide hydrolysis method can be obtained by vacuum sintering at 1750 ° C to obtain transparent mullite porcelain.
| Item | Test Condition | Unit&Symbol | Cordierite ceramics |
| The main chemical ingredient | MgO, Al2O3,SiO2 | ||
| Bulk Density | gm/cc | 2.6 | |
| Maximum Use Temperature | 1400℃ | ||
| Hardness | HV | 800 | |
| Bending Strength | 20℃ | Kgf/cm2 | 900 |
| Compressive Strength | 20℃ | Kgf/cm2 | 3500 |
| Fracture Toughness | K(I c) | Mpa m1/2 | - |
| Thermal expansion | 1X 10-6/℃ | ≤2.0 | |
| Thermal conductivity | 25℃-30℃ | W/m.k | 1.3 |
| Thermal Shock Resistance | Tc | ℃ | 250 |
| Dielectricity constant | 1MHz.25℃ | 6 | |
| Dielectric strength | ac-kV/mm (ac V/mil) | 10 | |
| Volume Resistivity | 20℃ | ohm-cm | > 1012 |
